SMART WATER MANAGEMENT UNIT ( DMA)

THE SMART END TO LOST LEAKS WITH HydroNYX!

Uzaktan izleme, raporlama, su açma/kesme

WHAT IS THE HydroNYX INTELLIGENT WATER MANAGEMENT UNIT?

hydronyx-akilli-dma-unitesi-kontrol-vanasi

hydronyx-akilli-dma-unitesi-kontrol-vanasi-cizim

Designed to Reduce Water Loss!

The HydroNYX Smart Water Management ( DMA) Unit is specially desinged for the applications in sub-zones in order to reduce water loss of Water Distribution Authorities.

The Optimal Solution for Different Hydraulic Applications!

HydroNYX is used for different applications such as; measurement, open-close, pressure reducing, sustaining, flow control etc…

Adaptable to Different Connections!

HydroNYX hydraulic and electronic control connections are adjusted for required applications. HydroNYX’s connections may vary depending on where it be used.

Options for Municipalities and Needs!

It is possible to add options according to water loss applications, park gardens management applications and agricultural demands.

Available to Use in Different Combinations!

HydroNYX can be used with DKY’s wide range of hydraulic control combinations.

Both Diaphragm Valve and Ultrasonic Flow Meter in one Unit!

The HydroNYX Smart Water Management (DMA) Unit compactly combines a DRF diaphragm with a high performance ultrasonic water meter into a single unit.

ADVANTAGES of HydroNYX:

Thanks to its ultrasonic measurement technology, there are no moving parts
Easy and compact installation, no straight pipe required to inlet / outlet.
It provides the opportunity to create stations in a short distance with its compact structure.
The smart datalogger has a long battery life without the need for external energy.
Due to its dimensions, it does not require placement and cabling in the smaller manhole.
It provides easy service on site.
It can be easily incorporated into the existing Scada system used.
10 Years battery life. Battery is in separate compartment for easy replacement.
Can be used with the mobile application.

USAGE AREAS:

Municipality water loss control
Municipality park and gardens control
Agricultural Irrigation Systems Control
Factory and organized industry water management
Sites and communal life water management
Hotel, resort, etc. Garden and water management of facilities.

OPTIONS:

Pulse output
Series Connection (MODBus)
NB-IoT/LoRa-WAN remonte connection system
Integrated battery Datalogger and Controller ( For Municipalities)
Remote irrigation control and software (for Parks & Gardens)
Time dependent water cut programme

TECHNICAL INFORMATIONS AND COMPONENT OF THE UNITS

FLOW TABLE (m³/h):

Nominal Diameter >	DN50	DN80	DN100	DN150	DN200
Q1	0,32	0,504	0,8	2	3,2
Q2	0,51	0,806	1,28	3,2	5,12
Q3	0,4	63	100	250	400
Q4	50	78,75	125	312,5	500
R= Q3/Q1	125	125	125	125	125

DIMENSION and WEIGHTS:

Nominal Diameter >	DN50	DN80	DN100	DN150	DN200
Length L (mm)	250	300	350	500	600
Height H(mm)	228	300	327	392	425
Width W(mm)	190	223	240	310	350
Weight A(kg)	10	13,5	21	43	67
Last Connections	TH	FF

TECHNICAL SPECIFICATIONS:

Nominal Pressure	PN10-16
Inlet / Outlet Size	DN50&200 EN1092-2
Flange Standard	TS ISO 7005-2 / TS EN 1092-2
Body Material	GGG40 Ductile Iron
Protection Class	IP68 (waterproof)

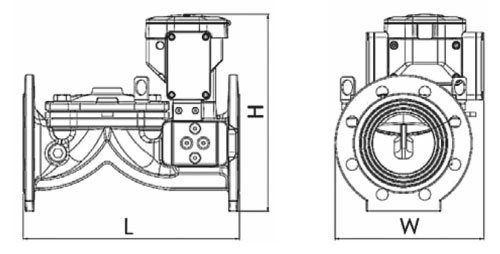

TECHNICAL DRAWING:

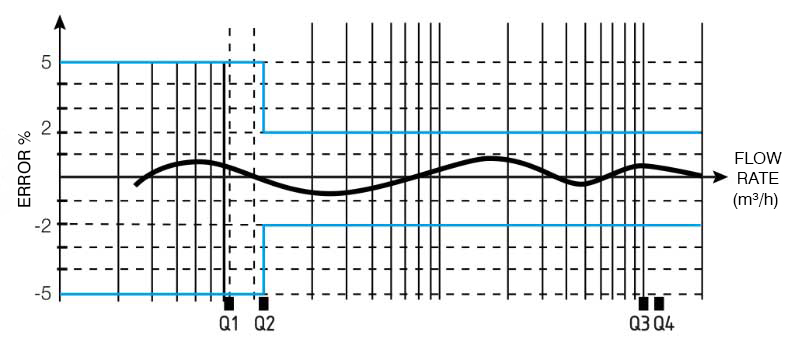

ERROR CURVE:

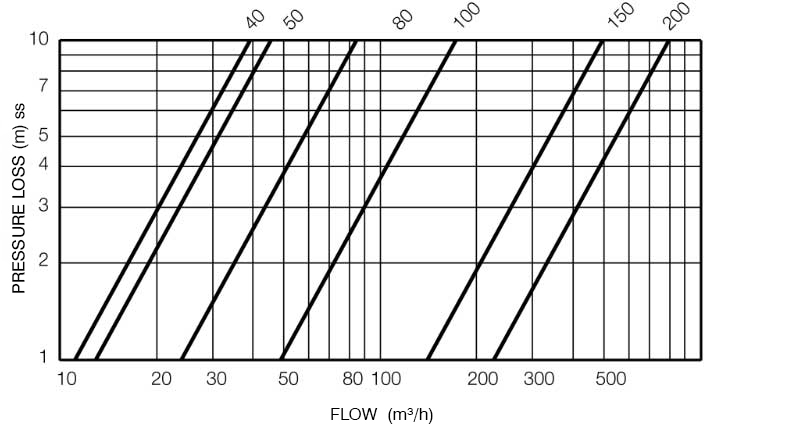

PRESSURE LOSS CURVE:

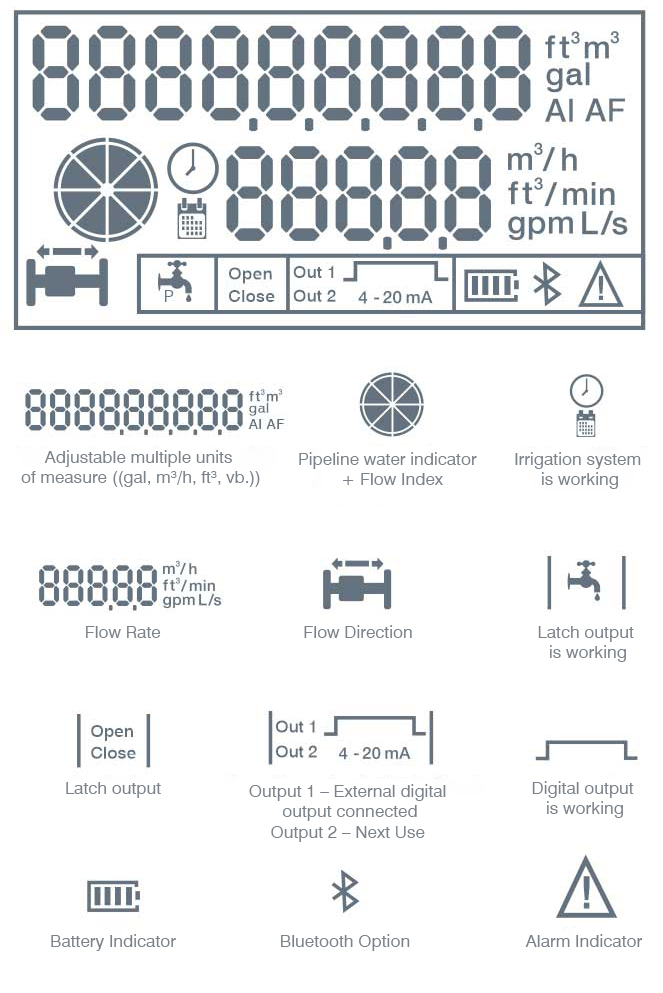

DISPLAY ICON:

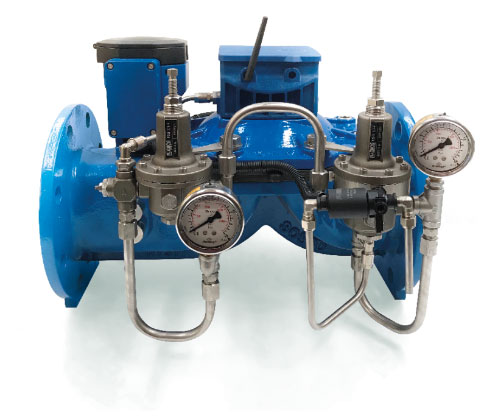

The PRODUCT of HydroNYX UNIT

hydronyx-akilli-dma-unitesi-kontrol-vanasi-ust

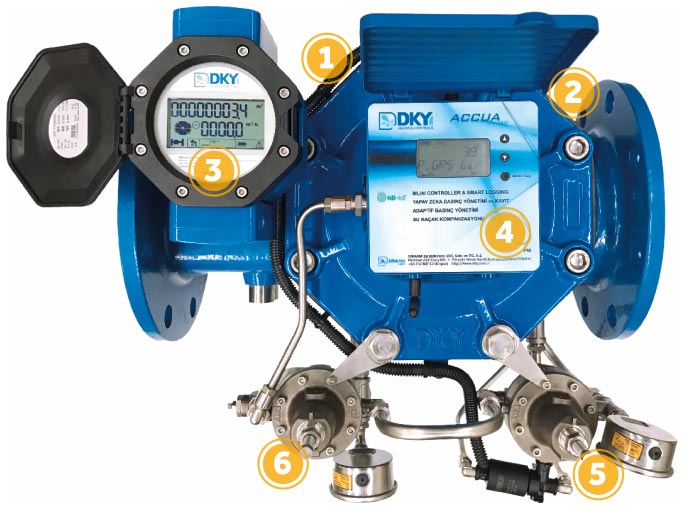

Product Units:

1) Inlet Pressure Measurement Unit

2) Outlet Pressure Measurement Unit

3) Ultrasonic Measurement Unit

4) Datalogger

5) P1 Pressure Adjustment Pilot

6) P2 Pressure Adjustment Pilot

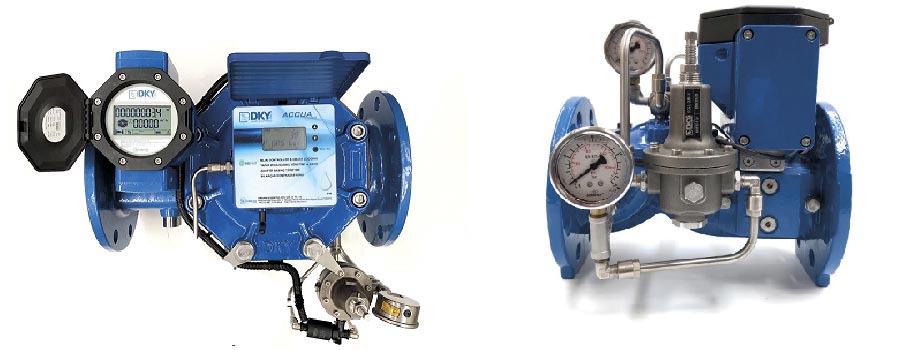

HydroNYX -P

Ultrasonic Metered & Single Point Pressure Controlled Leakage Loss Compensation Valve + Integrated Datalogger

Thanks to DMA Unit ACCUA-P, losses are reduced by regulating pressure at the beginning of the zone created in the network. With ultrasonic measurement, zone consumption can be monitored continuously and with the help of a solenoid, water cut-off can be performed with the programmed or central intervention. All data are recorded with integrated logger, reported to the center and recorded.

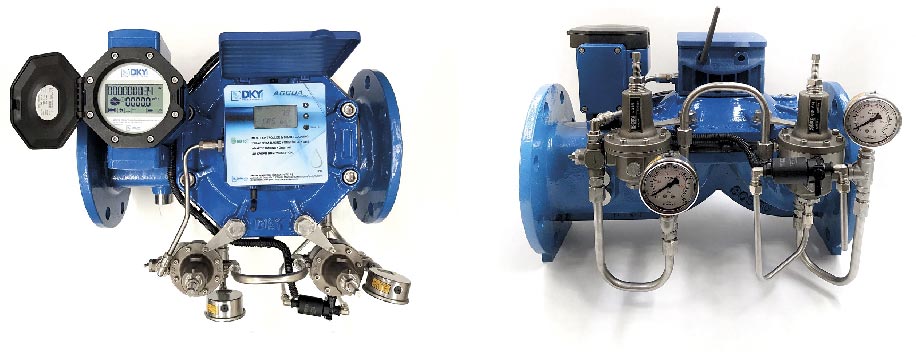

HydroNYX -2P

ACCUA_4.0-2P Ultrasonic Meter & Double Point Pressure Controlled Leakage Loss Compensation Valve +Integrated Datalogger

With DMA Unit ACCUA – 2P-NB-IoT, losses are reduced by adjusting day and night pressures on site and independently at the beginning of the zone created in the network. With ultrasonic measurement, zone consumption can be monitored continuously and with the help of a solenoid, water cut-off can be performed with the programmed or central intervention. . All data are recorded with integrated logger, reported to the center and recorded.

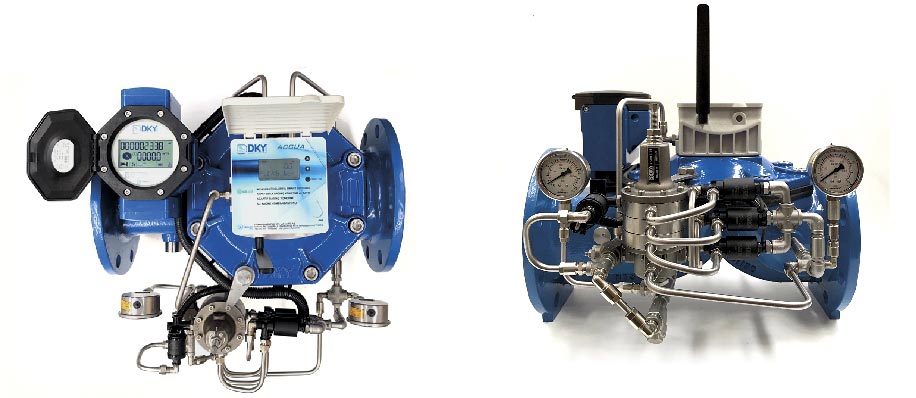

HydroNYX -8P

ACCUA_4.0-8P-NB-IoT New Generation Leakage Loss Compensation Valve with Ultrasonic Meter & Adaptive Pressure Control + Integrated Datalogger

With the DMA Unit ACCUA-8P-NB-IoT, at the beginning of the zone created in the network, different pressure and flow rates can be adjusted between day and night. Thus, with the smart valve operating under variable conditions, maximum savings from losses are achieved. With the ultrasonic measurement, zone consumption can be monitored continuously and with the help of a solenoid, water cut-off can be done over time, from a center.

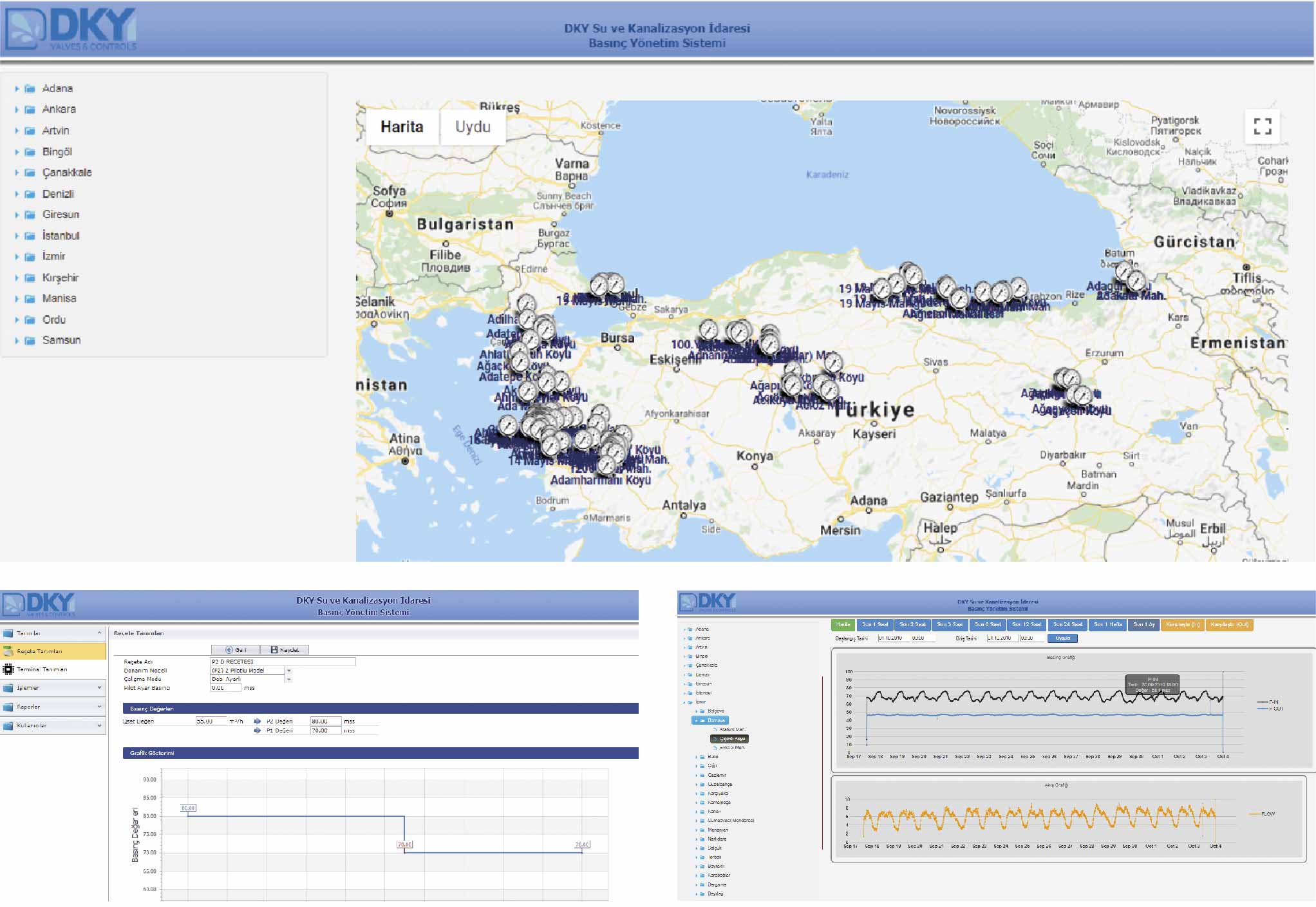

WEB SOFTWARE, SCREENSHOOTS AND SAMPLE APPLICATIONS

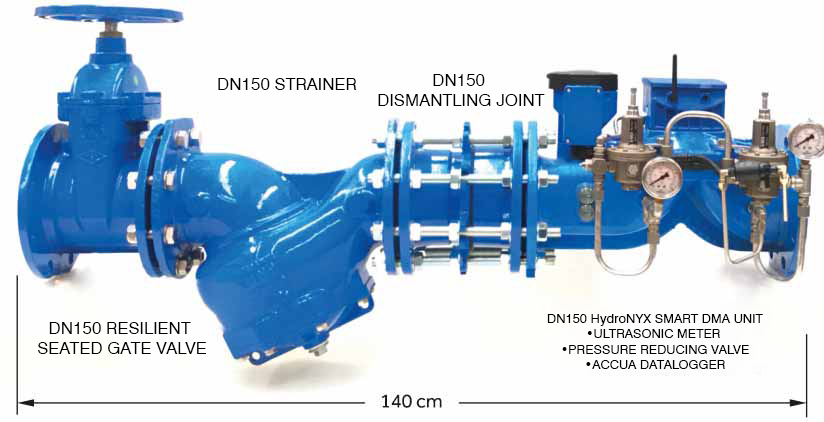

SAMPLE APPLICATION OF HydroNYX:

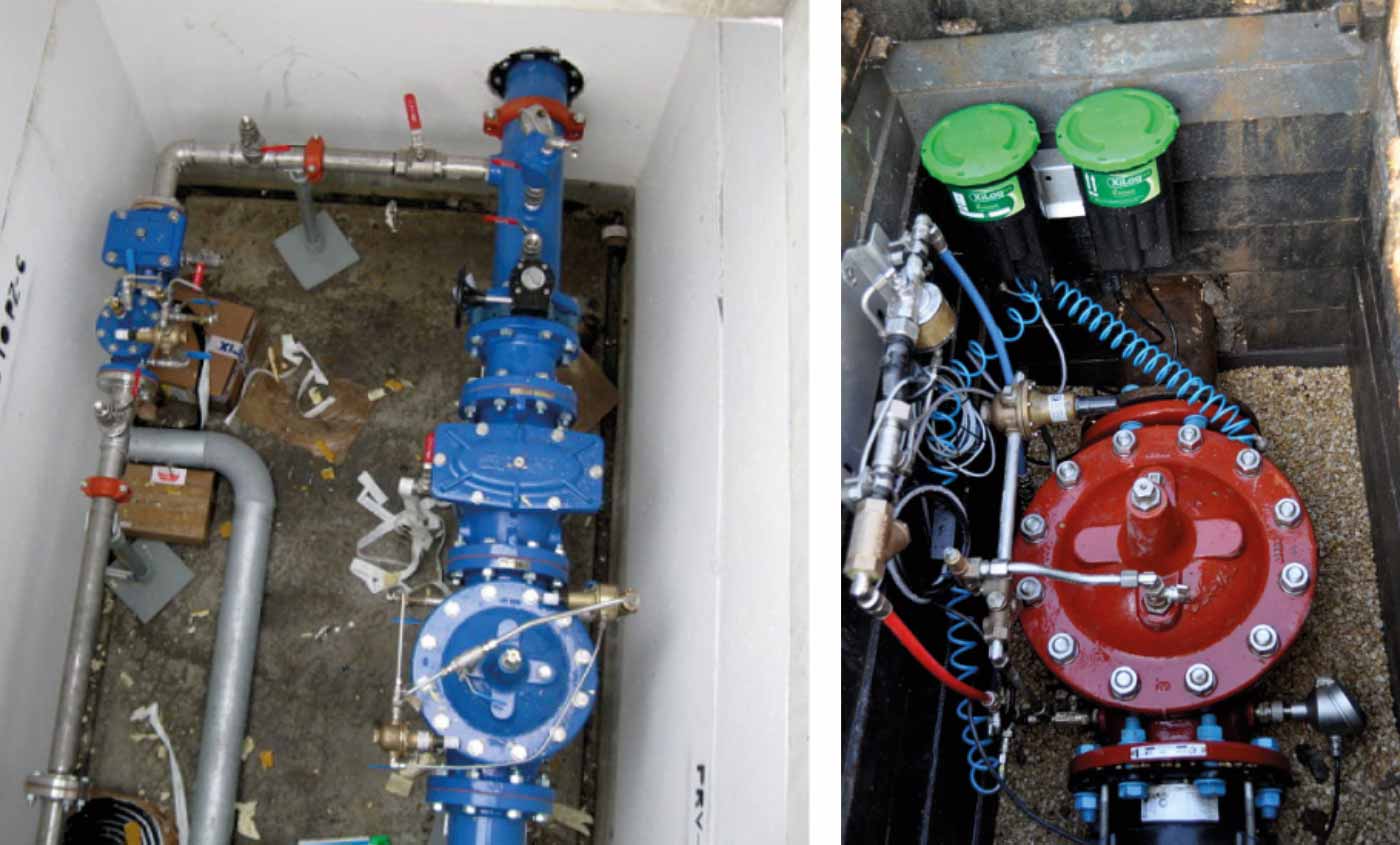

CURRENT TECHNOLOGY SAMPLE APPLICATIONS:

PRODUCT SPECIFICATIONS TABLE:

Specifications;	ACCUA_4.0-P	ACCUA_4.0-2P-IoT	ACCUA_4.0-8P-IoT
Instant Flow Rate / Total Volume Information Digital on Device
Flow Rate Information Pulse Output Cable	OPTIONAL	OPTIONAL	OPTIONAL
Line Inlet / Outlet Pressure Information
Single Point Pressure Adjustment (Adjusting on constant outlet pressure)
Double Point Pressure Adjustment (Adjusting on day and night pressure)
Set time of Transition Day and Night Pressures
Adaptive Pressure Adjusting – Adjustment to 8 Different Values and Programmable Pressure Reducing (Remote adjustment of night pressure – automatic adjustment depending on dynamic required flow)
Excessive Flow Warning System ( Emergency water cut-off / Pipe bursting warning and reporting to the center and SMS to contact list)
Emergency Flow Requirement Warning System ( Emergency rewater / water needs and information to the center for fire )
Remote water open-close / Planned Water Cut-off System
Datalogger ( Inlet/Outlet pressure – instant flow data recording and reporting to the center )
Operation with the critical point and reporting unit		OPTIONAL	OPTIONAL

Curves is prepared according to TS-EN-14267+AC:2009 Irrigation Techniques – Irrigation Hydrants
